Supports Intel® 12th Gen processors
Including Celeron®, Core™ i5, Core™ i3, Core™ i7, Core™ i9 and Pentium® Gold in an LGA 1700 socket
ChipsetWith an Intel® Z690 chipset for fast computing.
Dual Channel DDR4-5200Mhz4 DIMM
Graphics Interface1x PCIe 5.0 x16 1x PCIe 3.0 x16
Expansion Slots1x PCIe 3.0 x16 1x PCIe 3.0 x1
Storage3x M.2 Gen4 x4 64Gbps 1x M.2 Gen3 x4 32Gbps 6x SATA 6Gbps

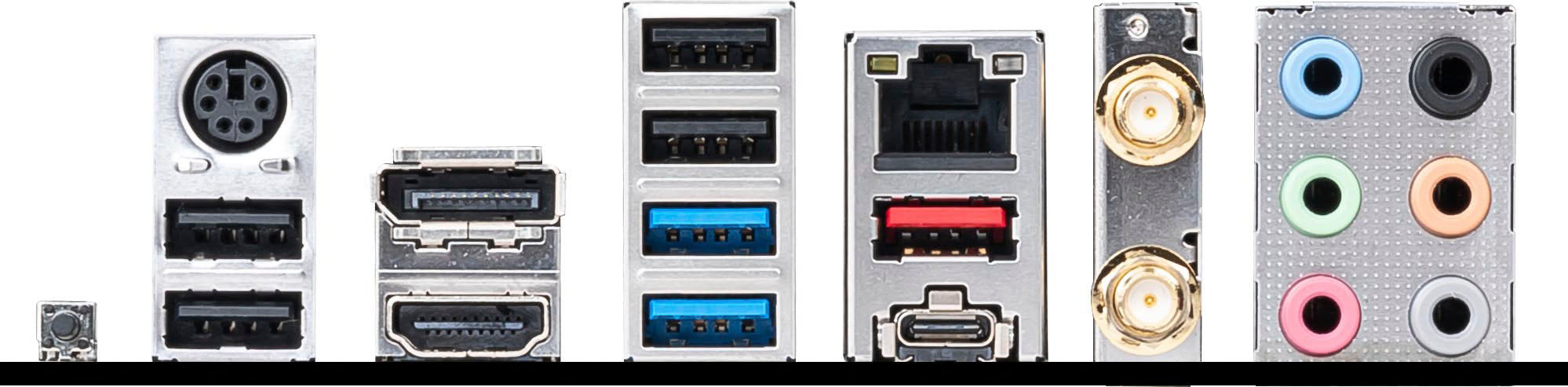

USB1x USB 3.2 Gen 2x2 20 Gbps (1 Type-C) 2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1Type-C) 6x USB 3.2 Gen 1 5 Gbps (6 Type-A) 8x Usb 2.0
When you shop at Zebit, you will be asked to make a down payment and the remaining amount will be split into installment payments over the next 6 months
Payments Frequency
This is a representative example. Product offering can vary based upon creditworthiness of customers and inventory availability for Zebit. Pricing shown is only for the product cost and may not include shipping, handling, or sales tax. Actual down payment may vary by customer creditworthiness and/or individual product. 0% APR for 6 months.
Get StartedDescription

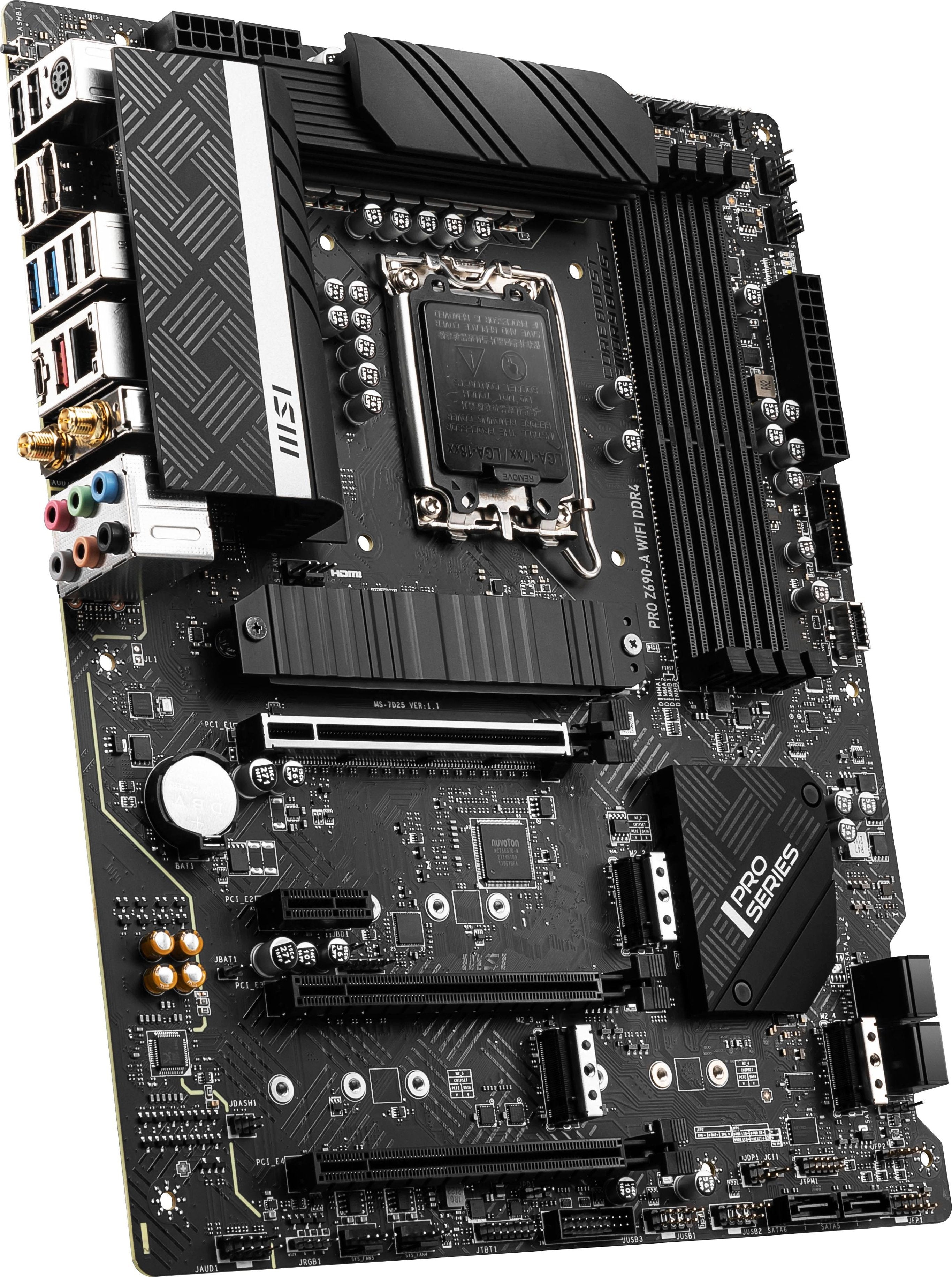

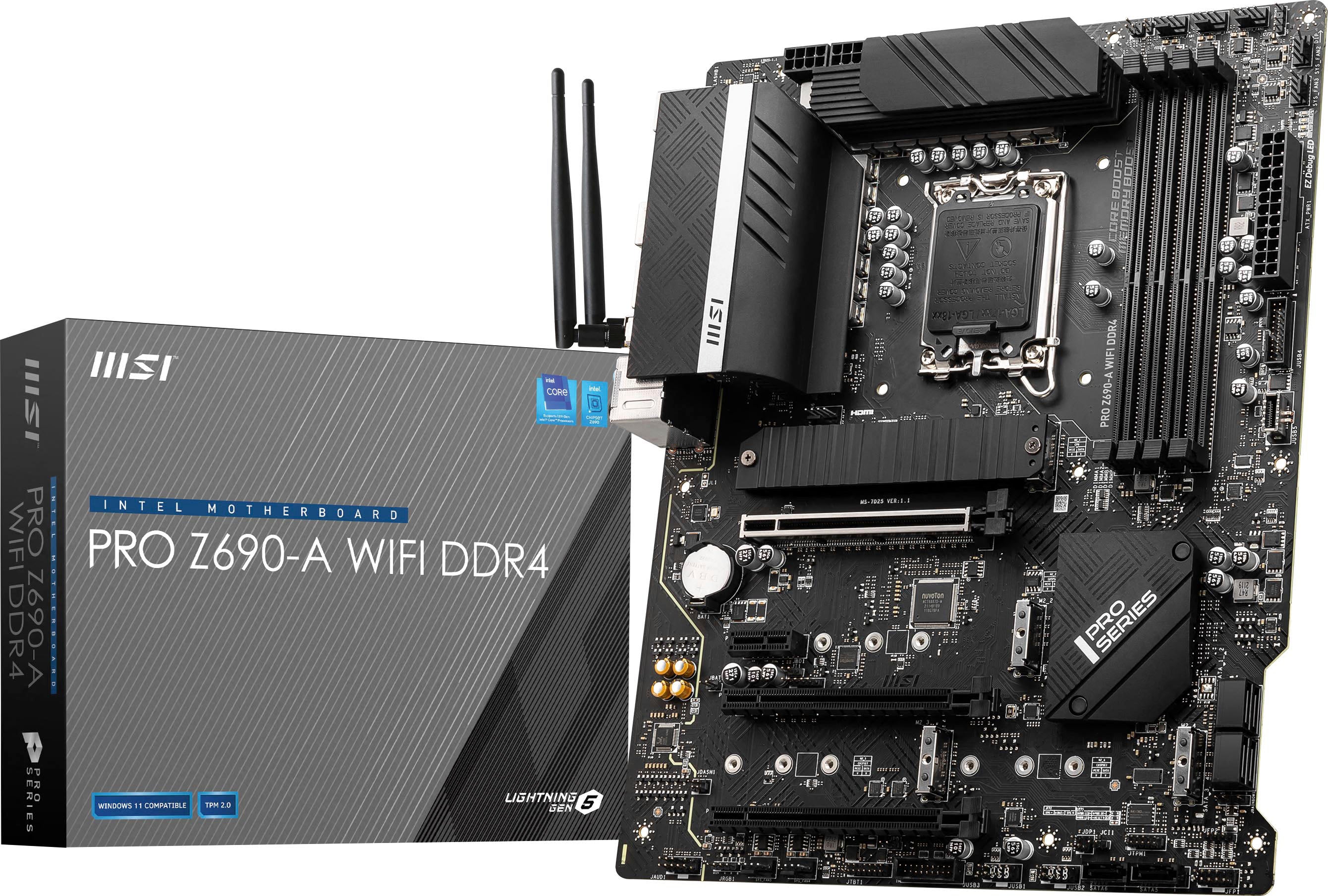

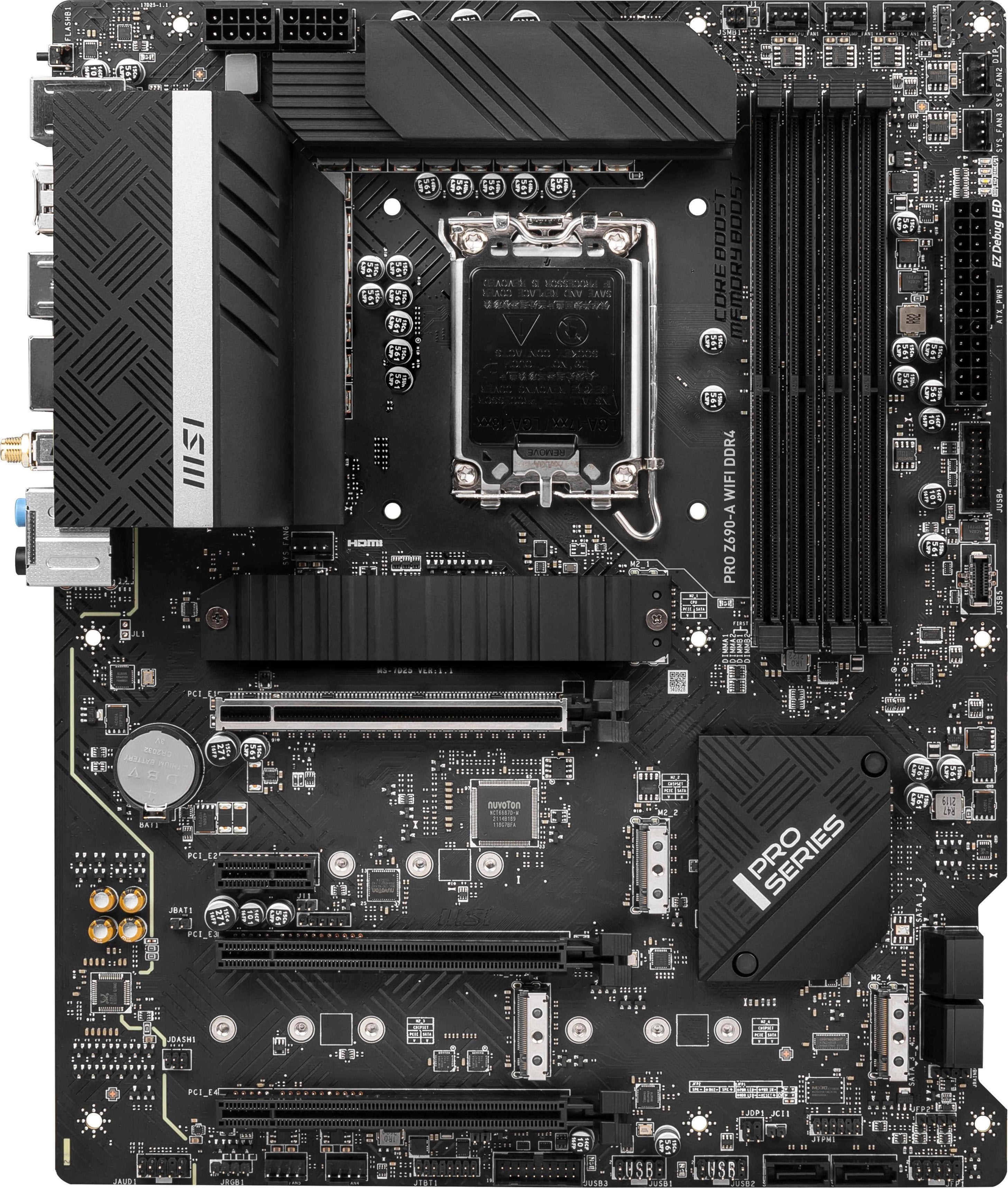

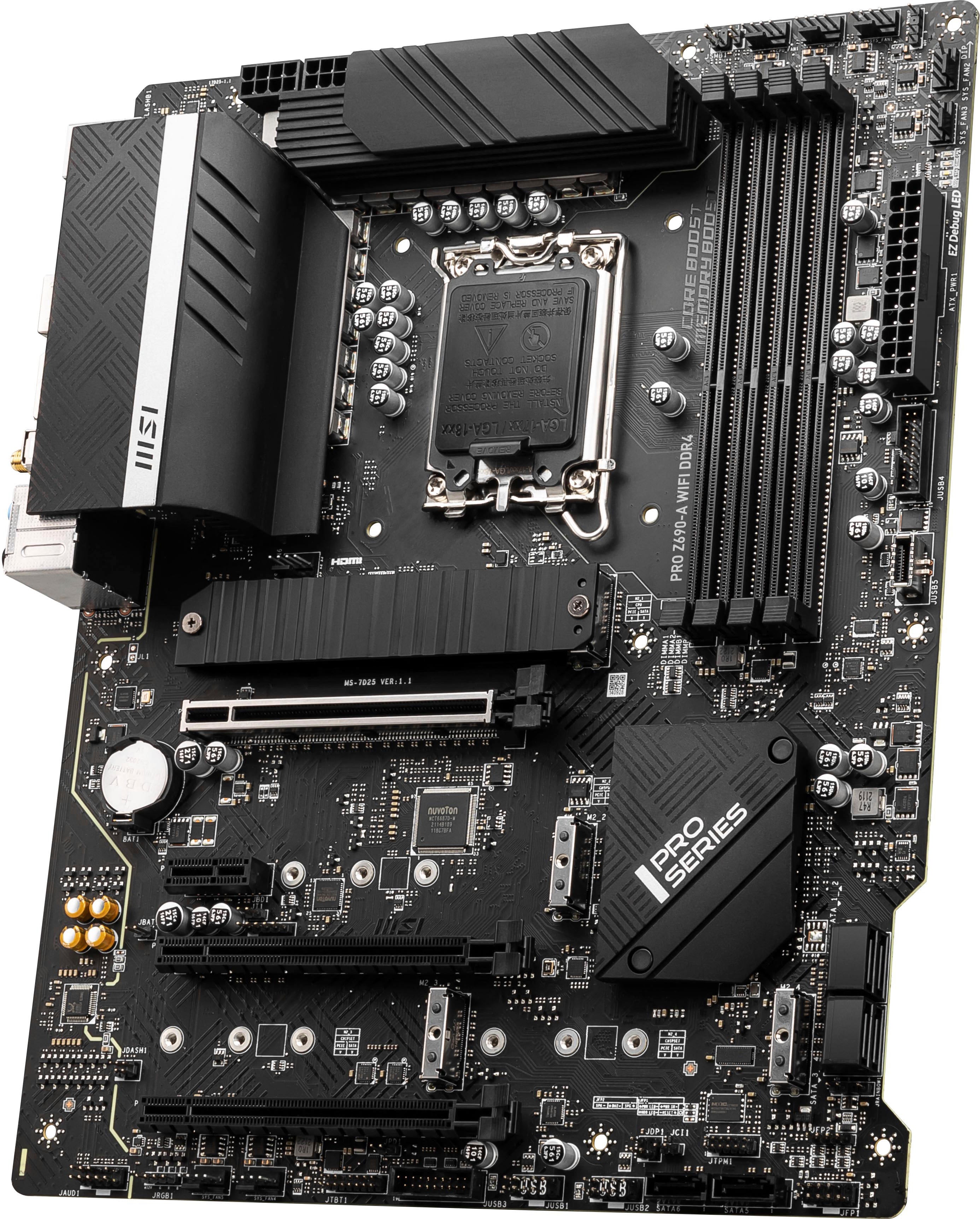

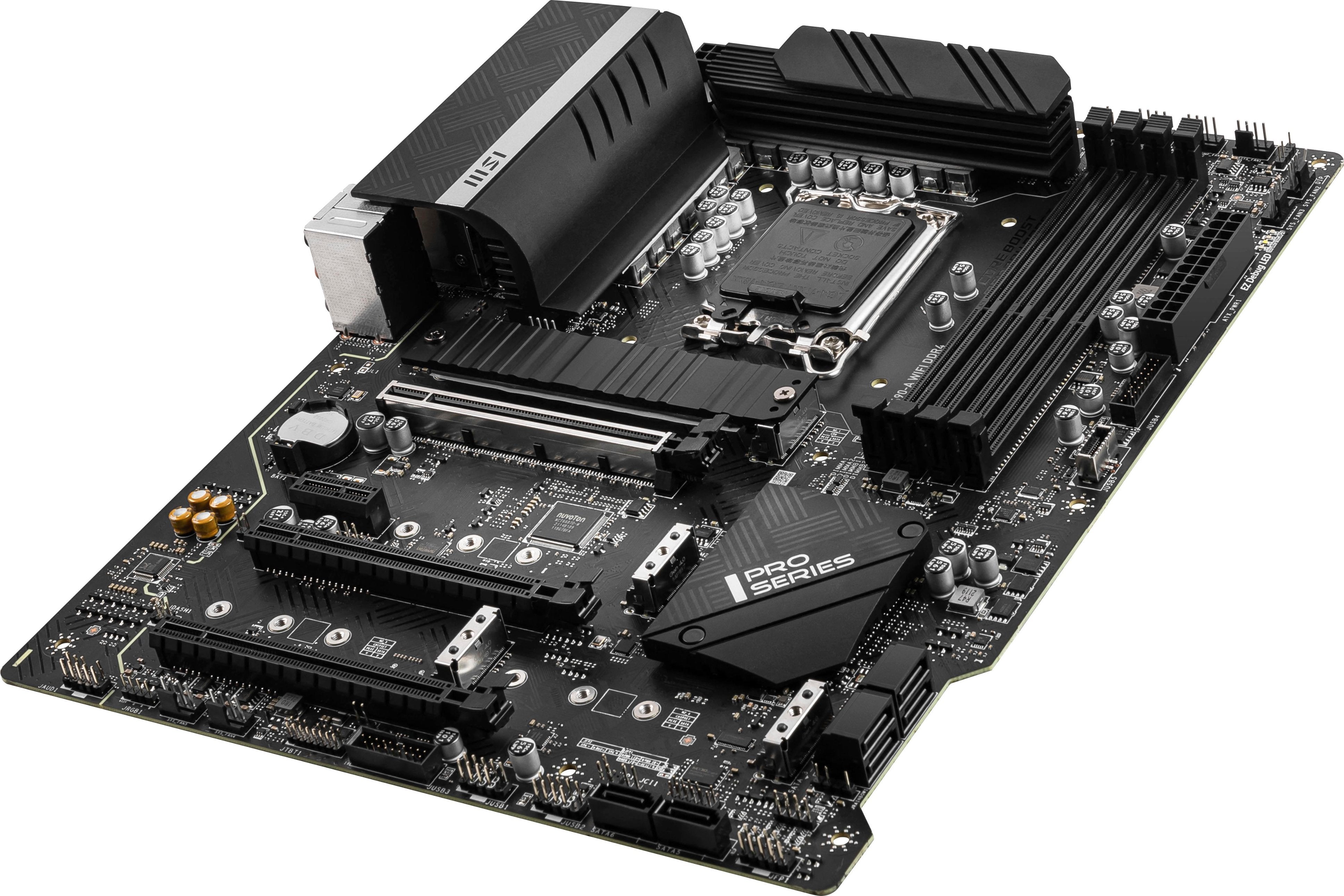

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards. World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. 14 + 1 +1 POWER DESIGN Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 digital CPU power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work. MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for Z690 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Supports Intel® 12th Gen processors
Including Celeron®, Core™ i5, Core™ i3, Core™ i7, Core™ i9 and Pentium® Gold in an LGA 1700 socket
ChipsetWith an Intel® Z690 chipset for fast computing.
Dual Channel DDR4-5200Mhz4 DIMM
Graphics Interface1x PCIe 5.0 x16 1x PCIe 3.0 x16
Expansion Slots1x PCIe 3.0 x16 1x PCIe 3.0 x1
Storage3x M.2 Gen4 x4 64Gbps 1x M.2 Gen3 x4 32Gbps 6x SATA 6Gbps
USB1x USB 3.2 Gen 2x2 20 Gbps (1 Type-C) 2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1Type-C) 6x USB 3.2 Gen 1 5 Gbps (6 Type-A) 8x Usb 2.0
